Packing List
| Image | Description | Reference | Quantity |
|---|---|---|---|

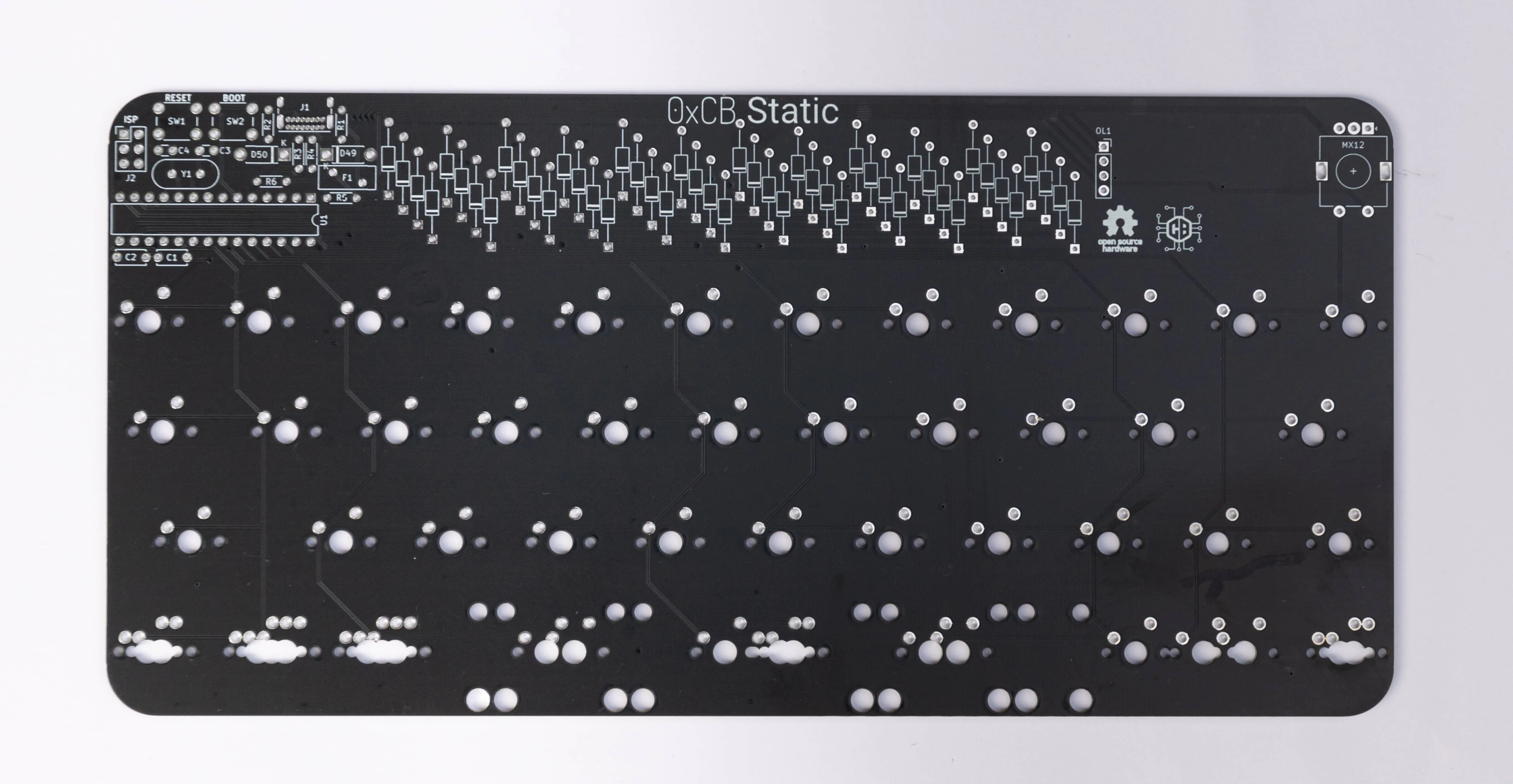

 | PCB | 1 | |

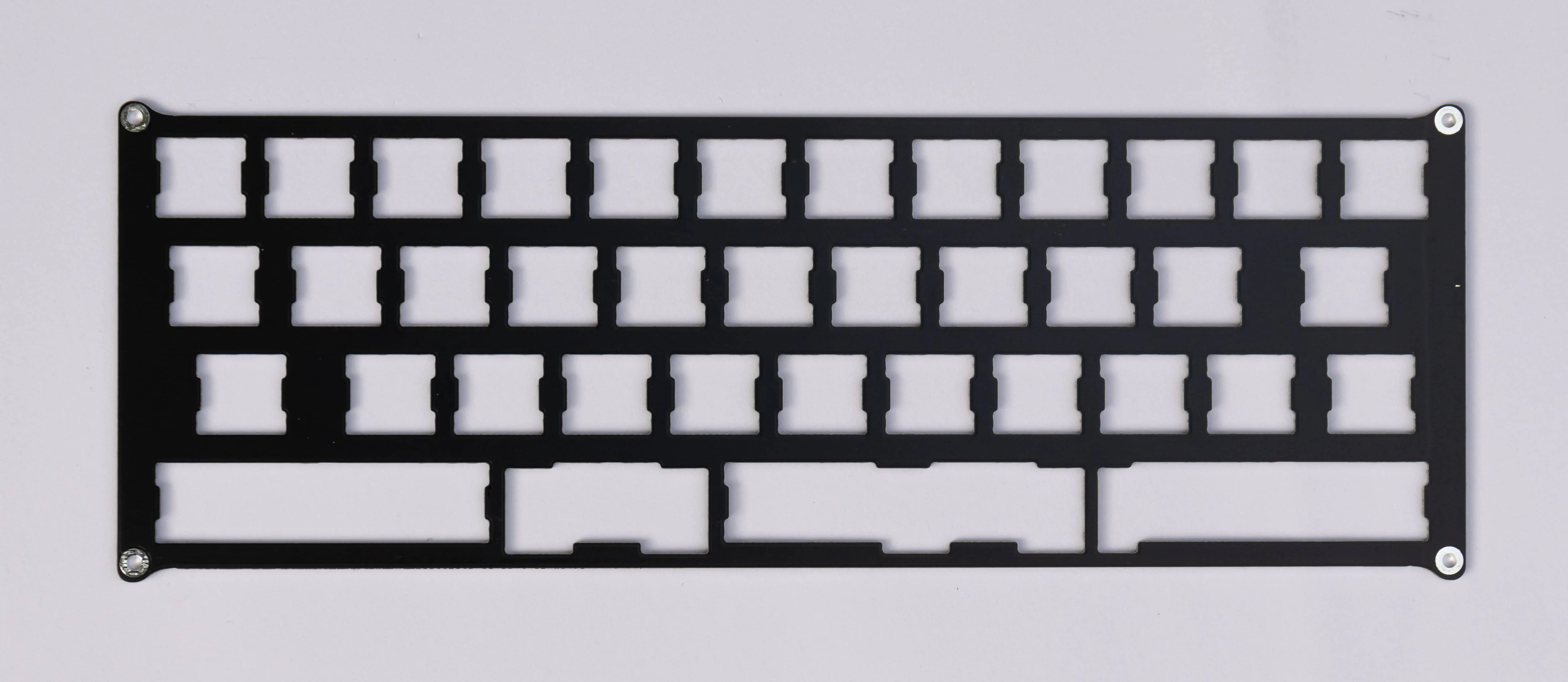

 | switch plate | 1 | |

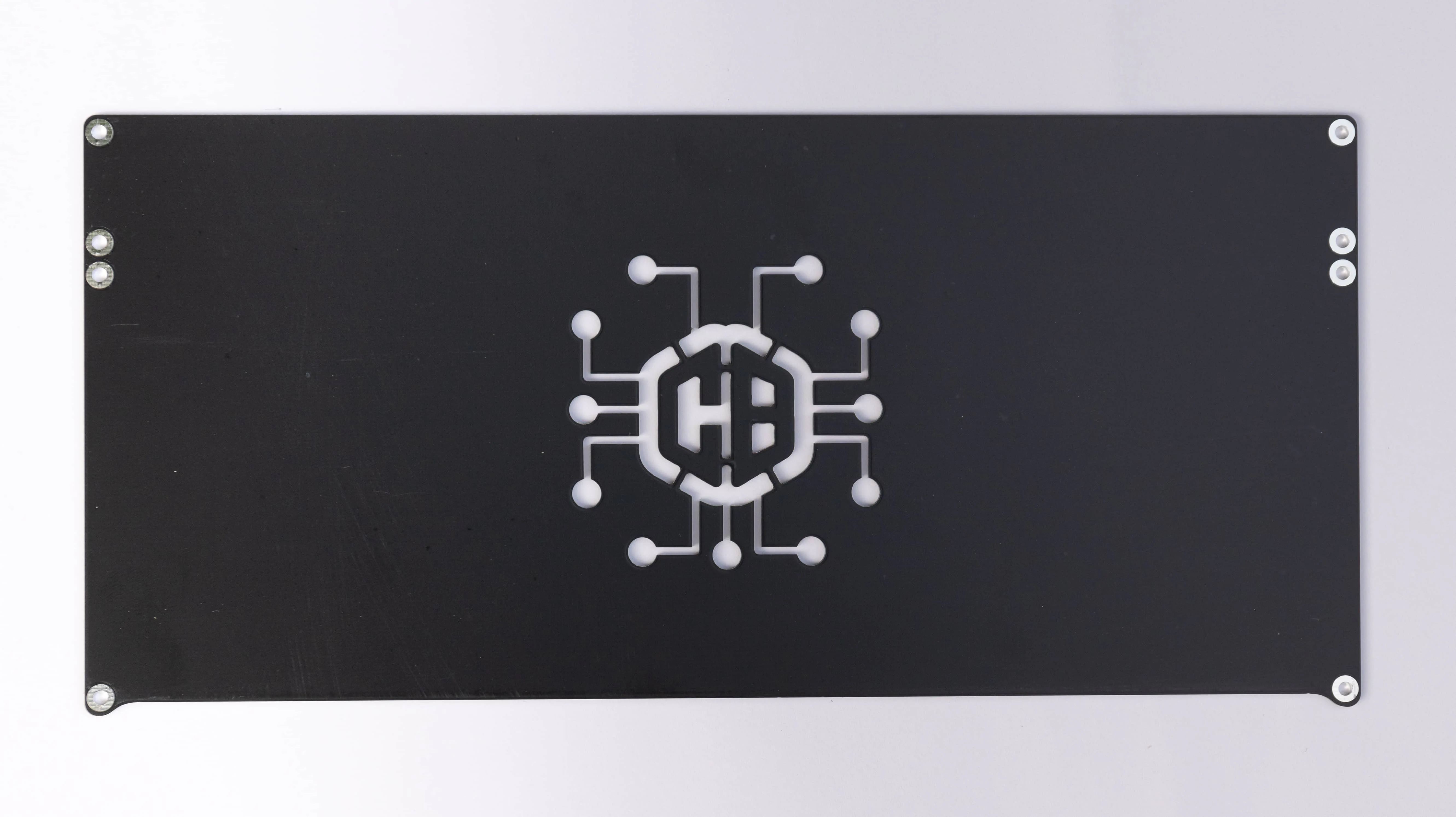

 | bottom plate | 1 | |

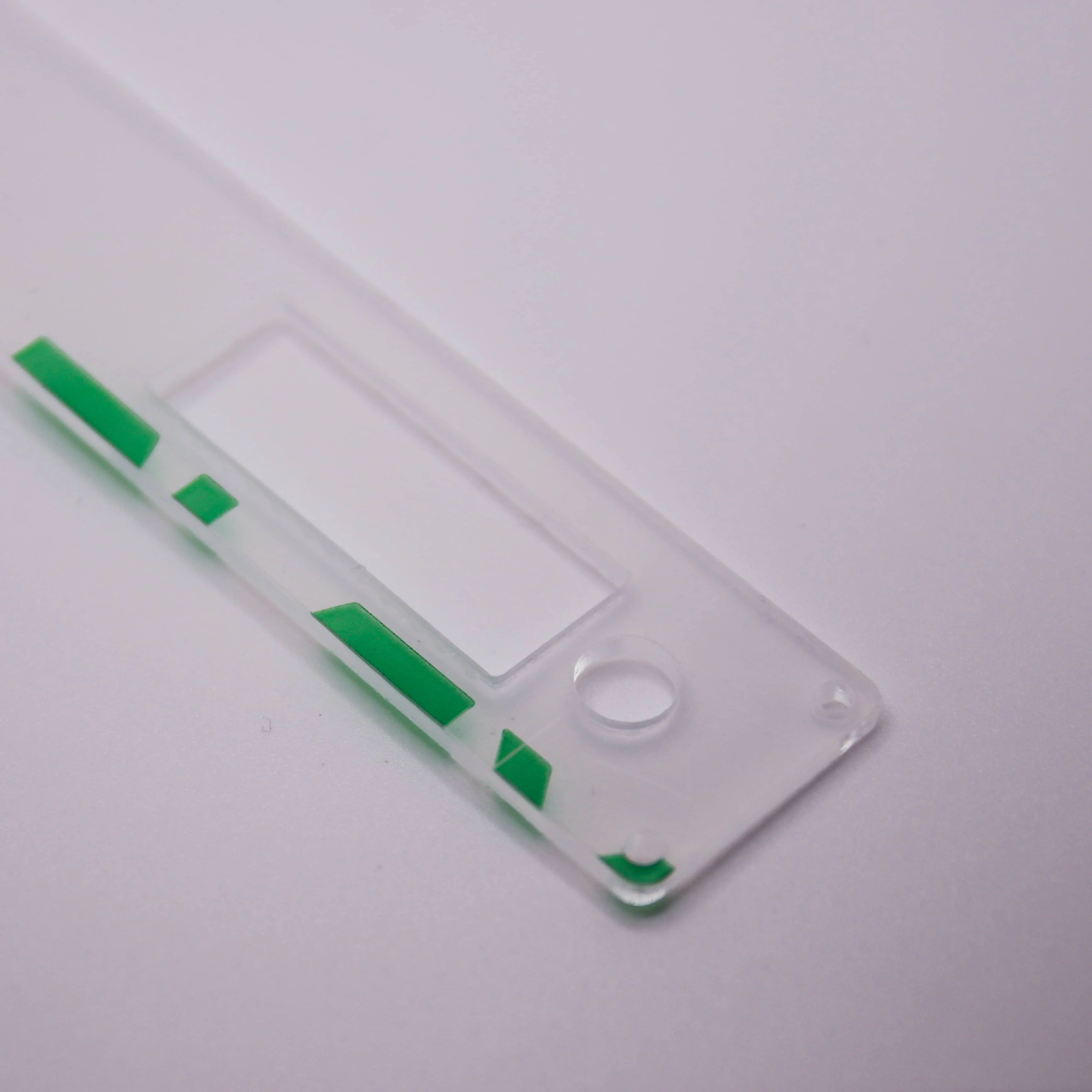

 | acryl cover | 1 | |

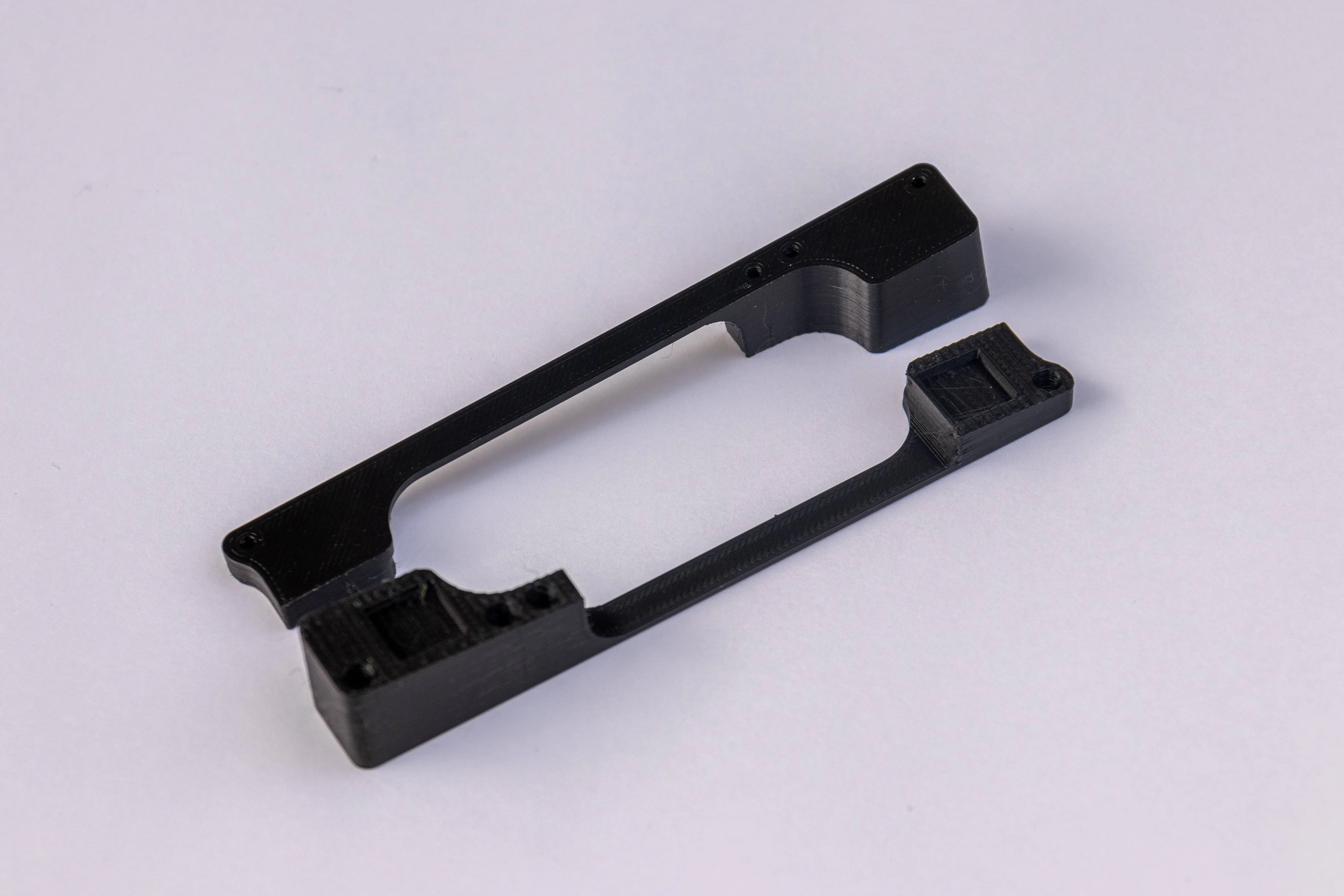

 | 3D-printed feet | 1 left 1 right | |

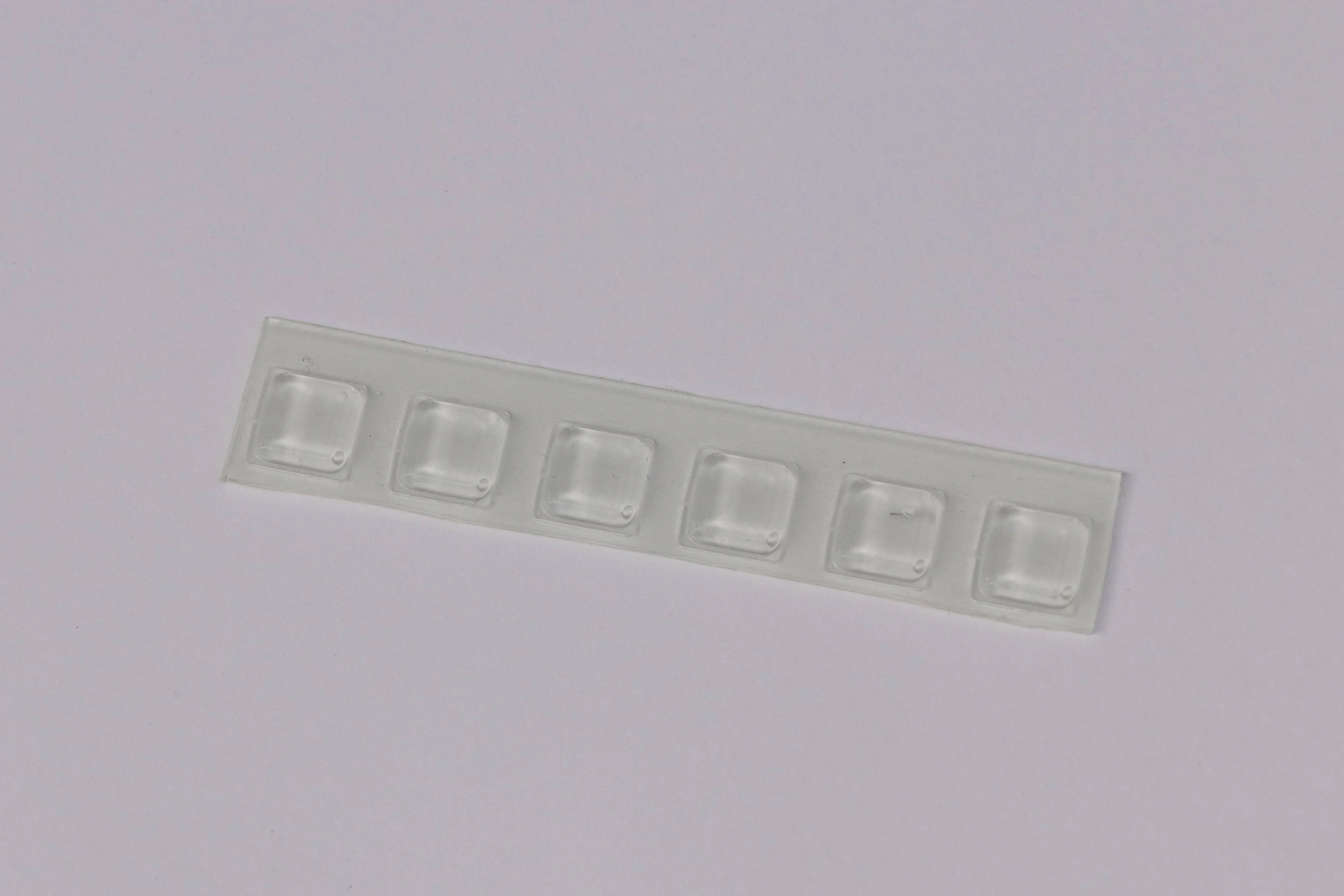

 | rubber feet | 6 | |

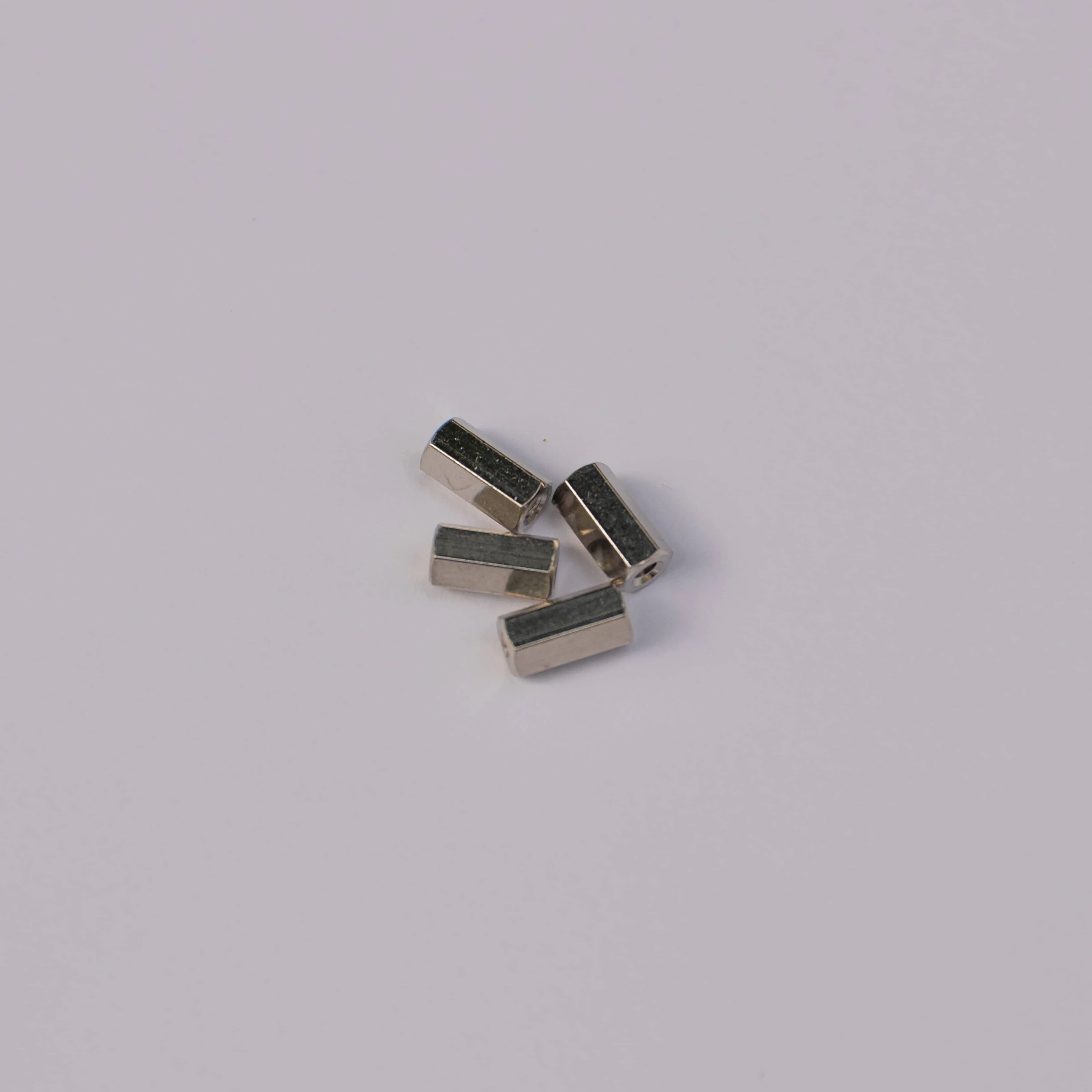

 | small standoffs (M2x8mm) | 4 | |

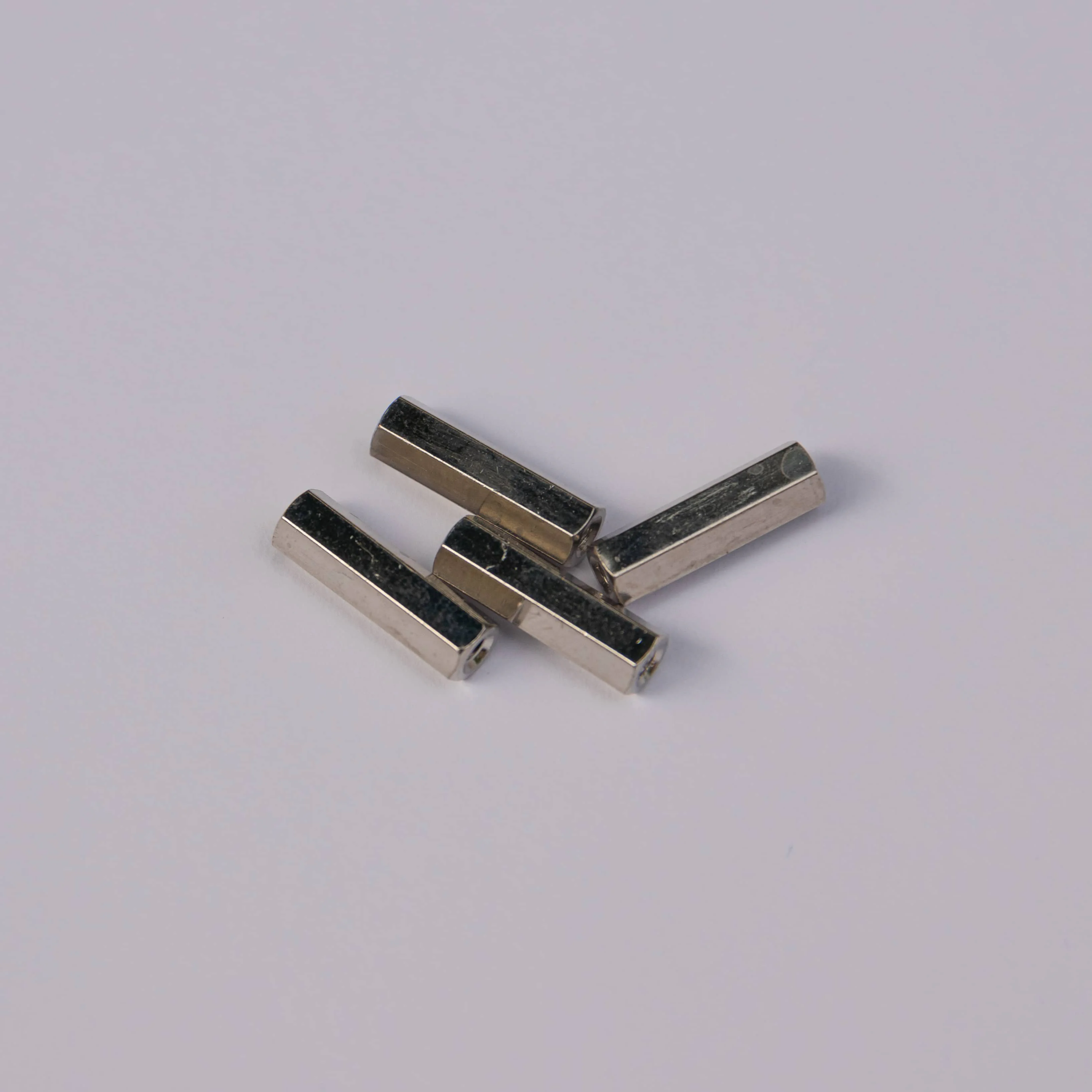

 | big standoffs (M2x12mm) | 4 | |

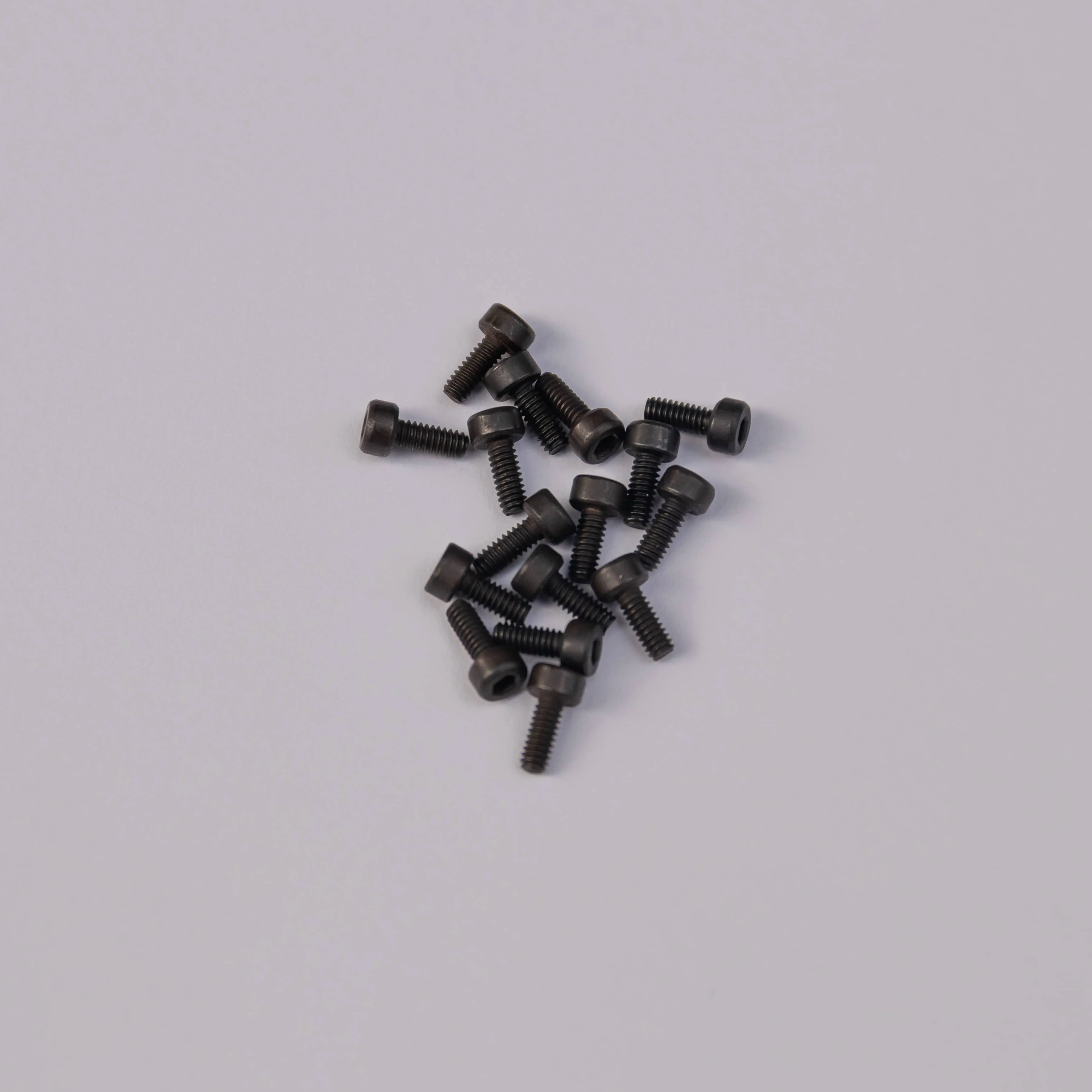

 | screws (M2x16mm) | 16 | |

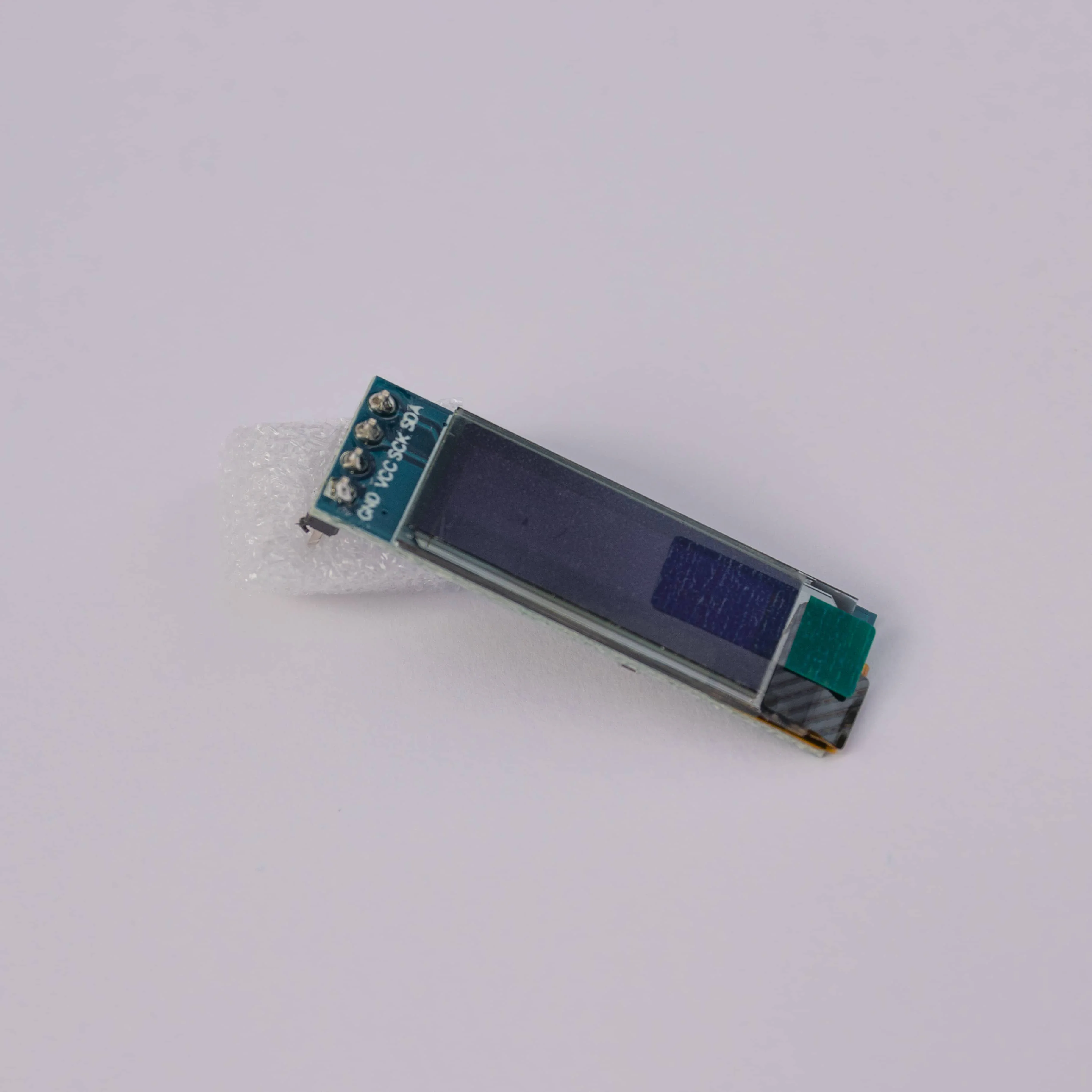

 | OLED screen The OLED screen is sealed in an antistatic bag upon arrival. | OL1 | 1 |

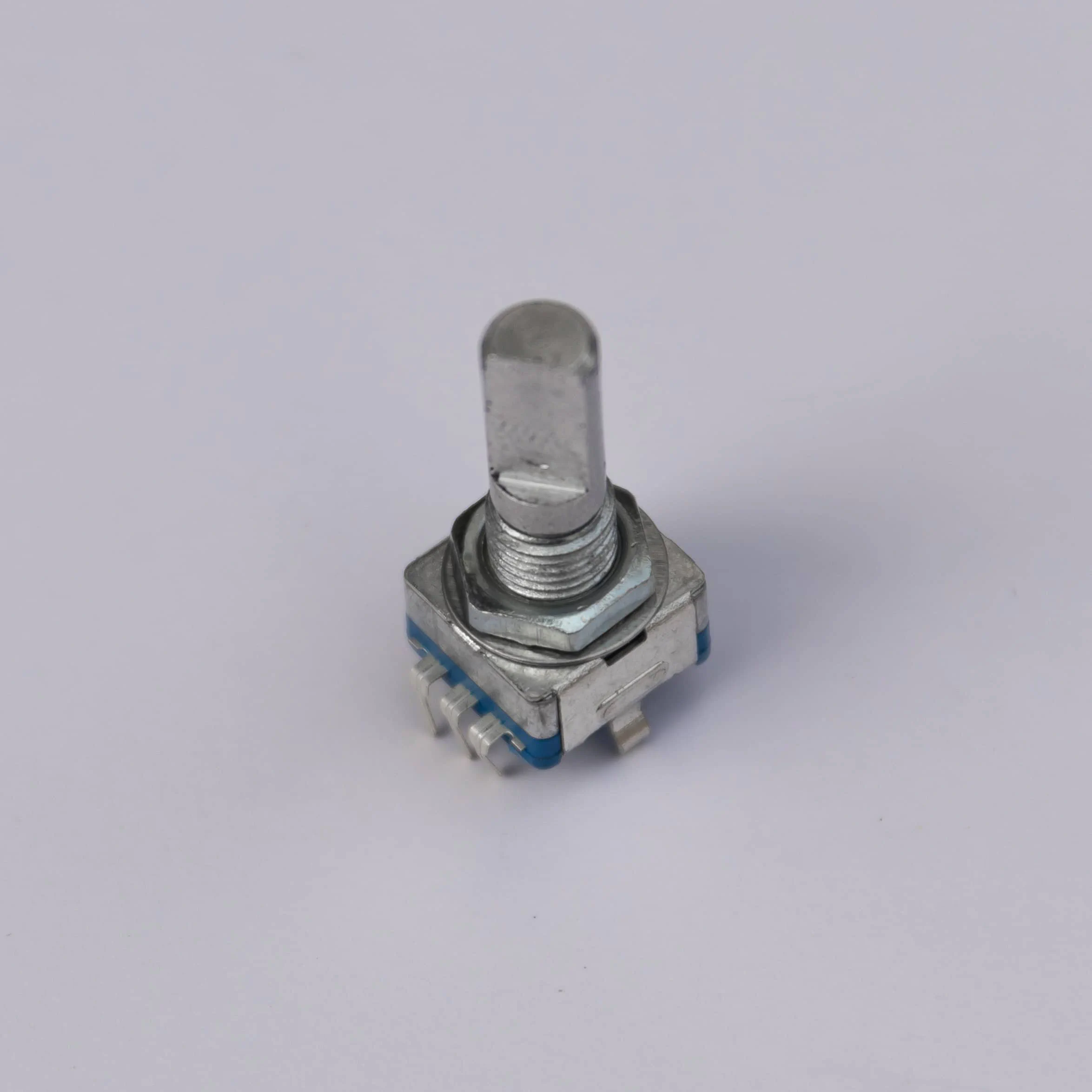

 | EC11 rotary encoder | MX12 | 1 |

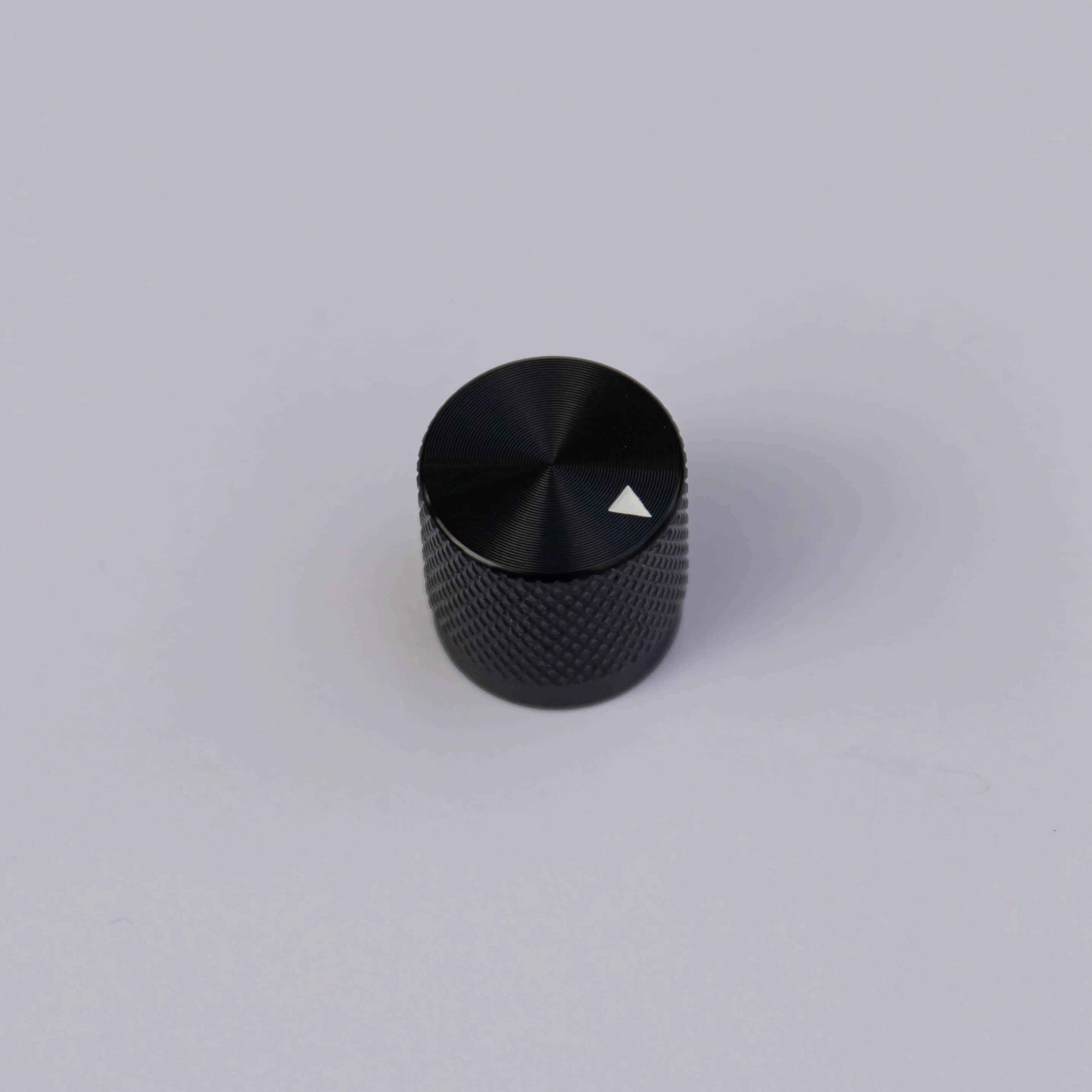

 | aluminium rotary encoder knob | 1 | |

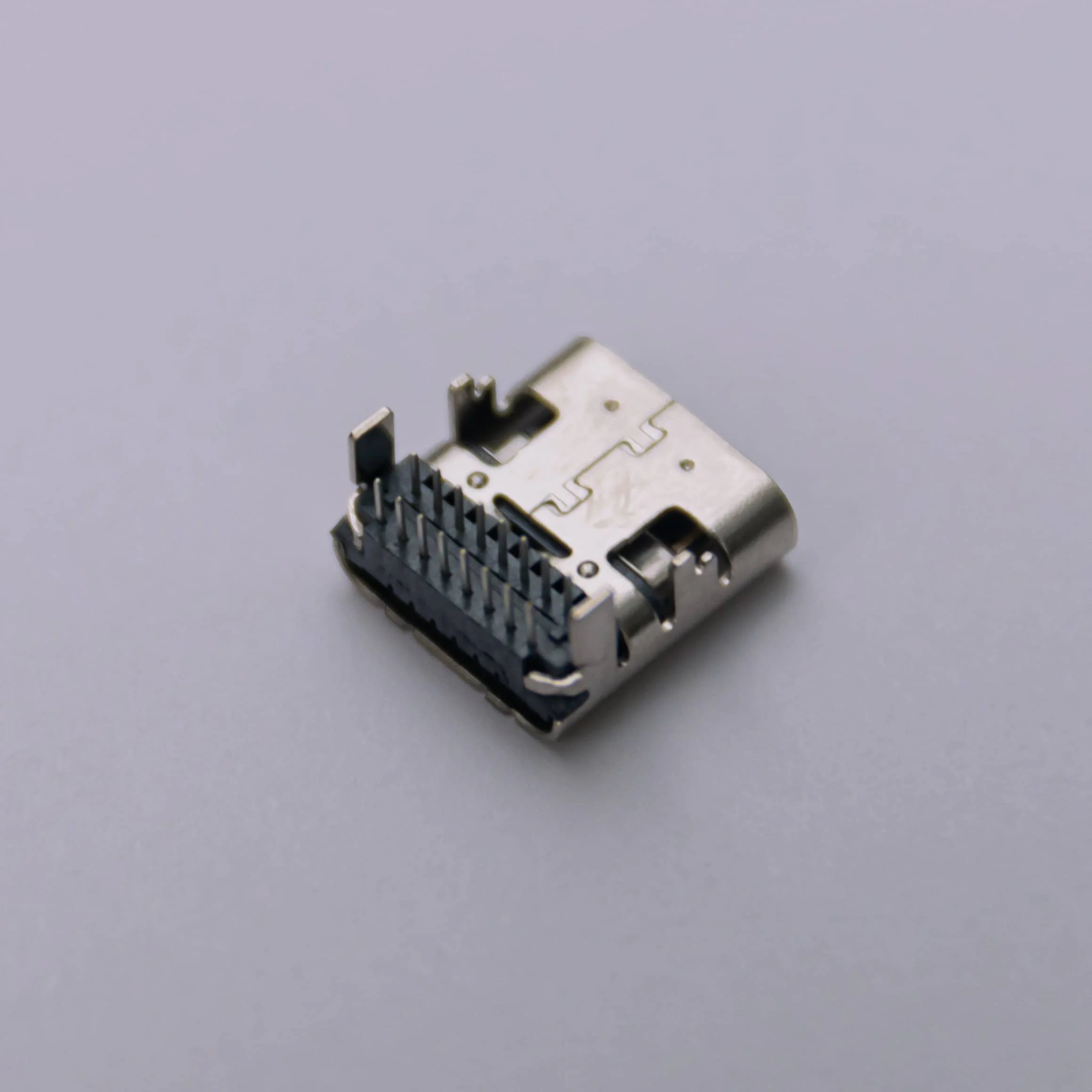

 | USB-C port | J1 | 1 |

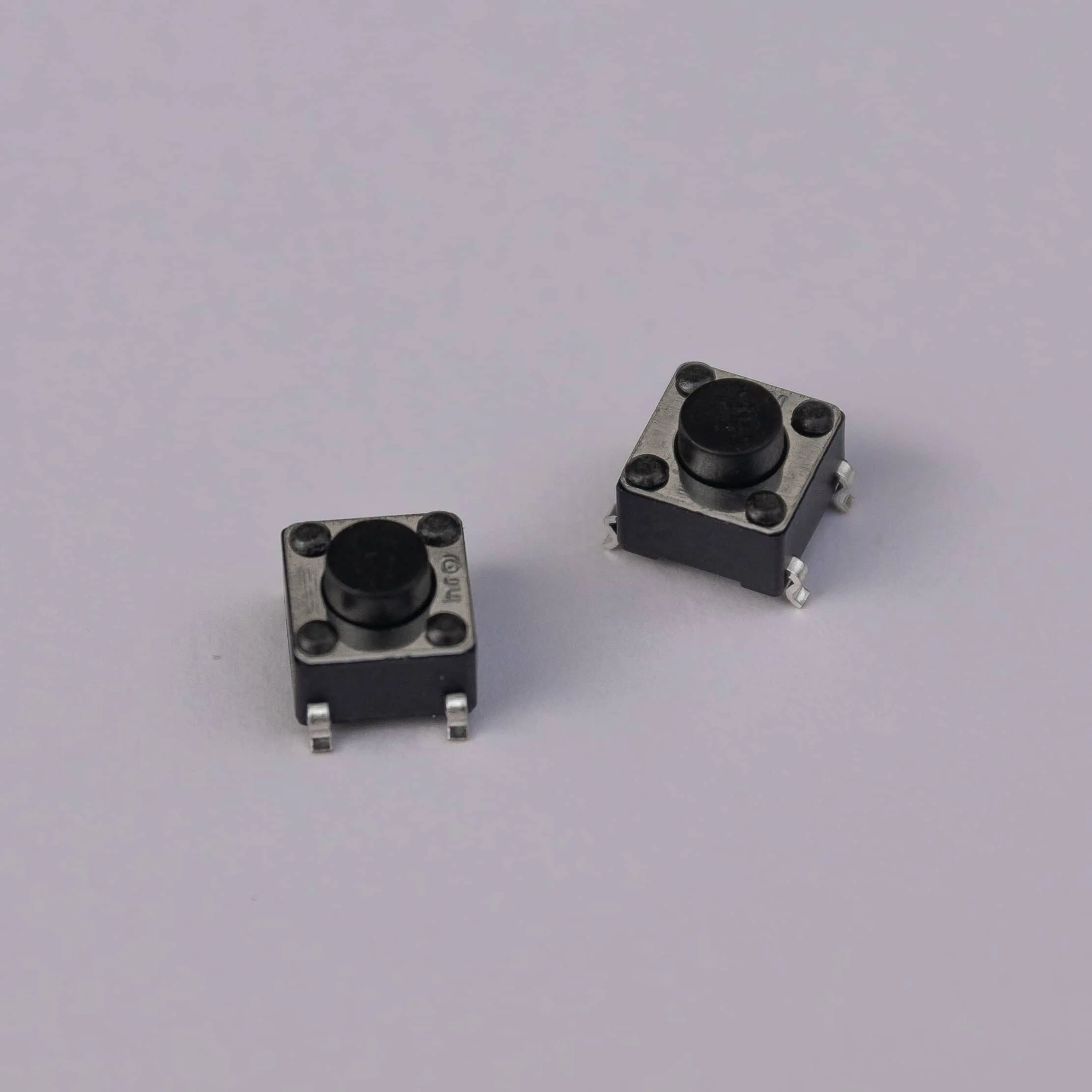

 | RESET and BOOT buttons | SW1, SW2 | 2 |

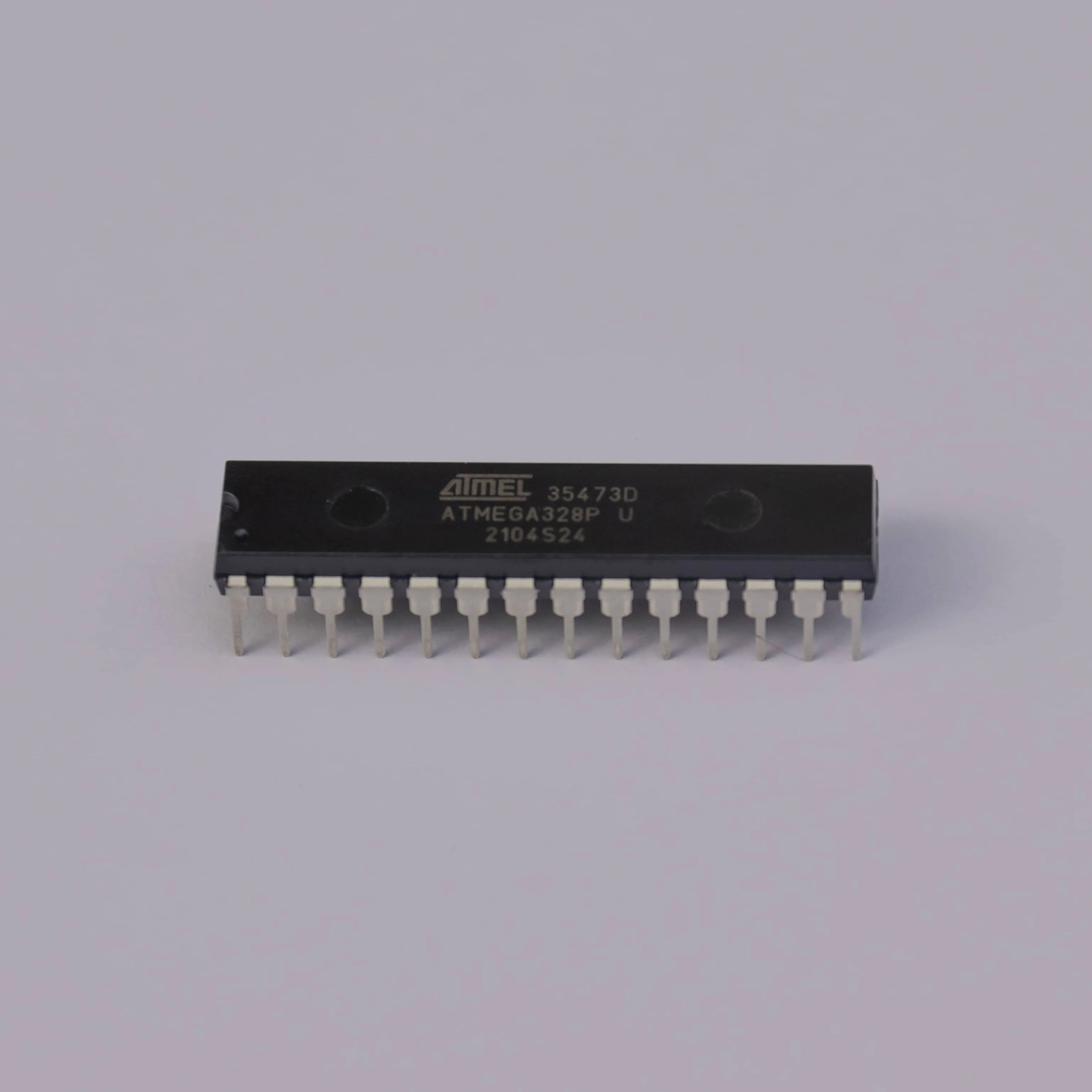

 | ATMEGA328P processor | U1 | 1 |

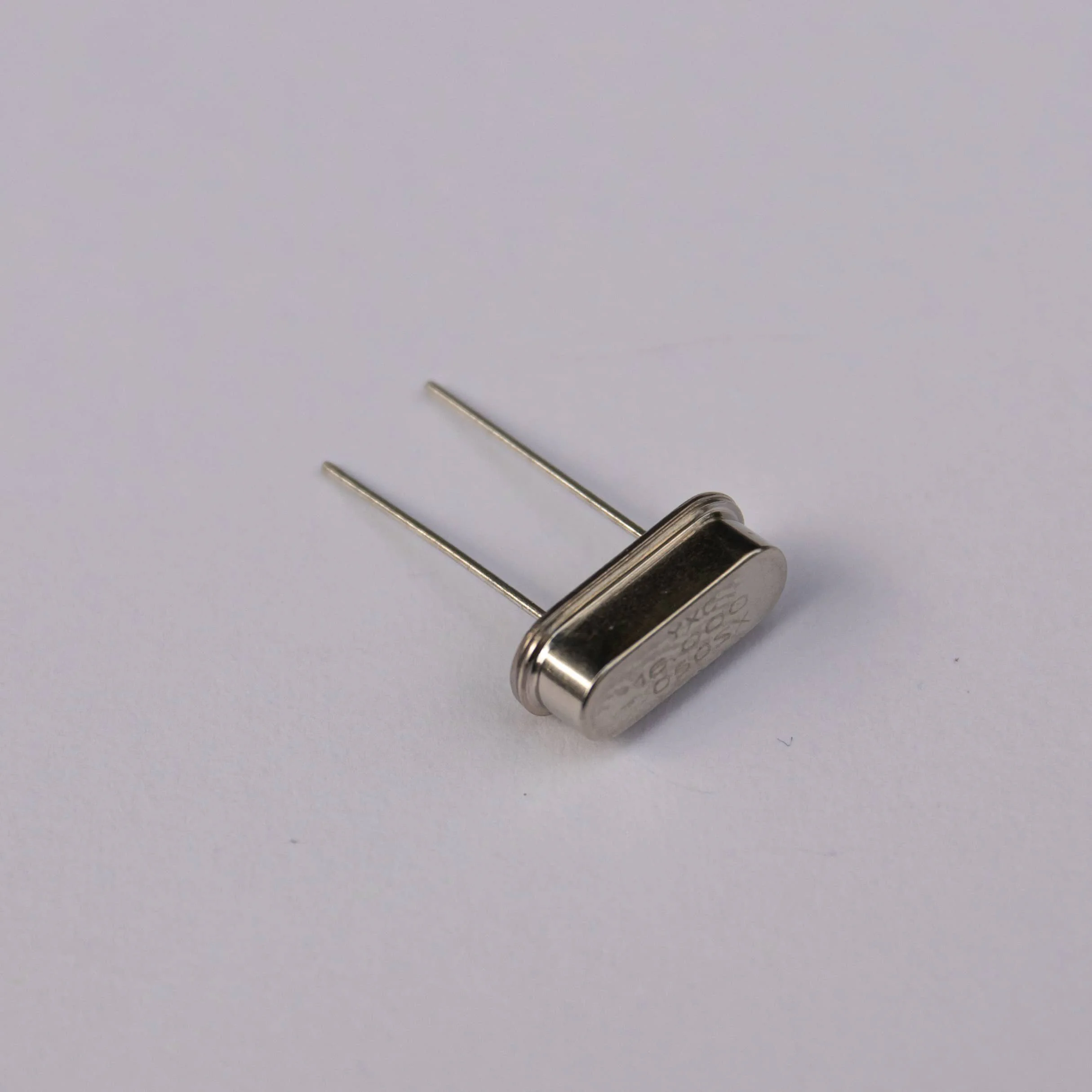

 | clock 16MHz | Y1 | 1 |

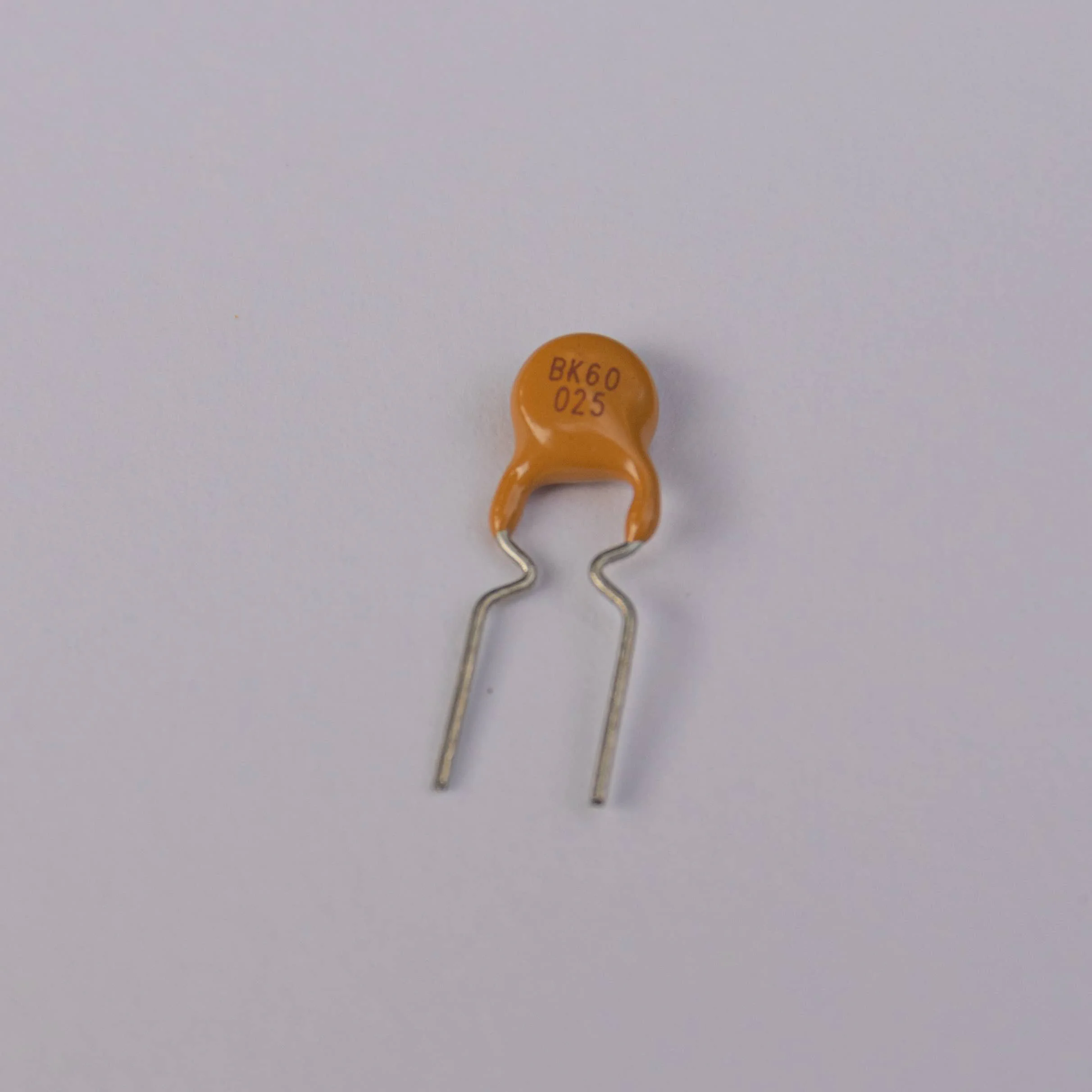

 | fuse 500mA | F1 | 1 |

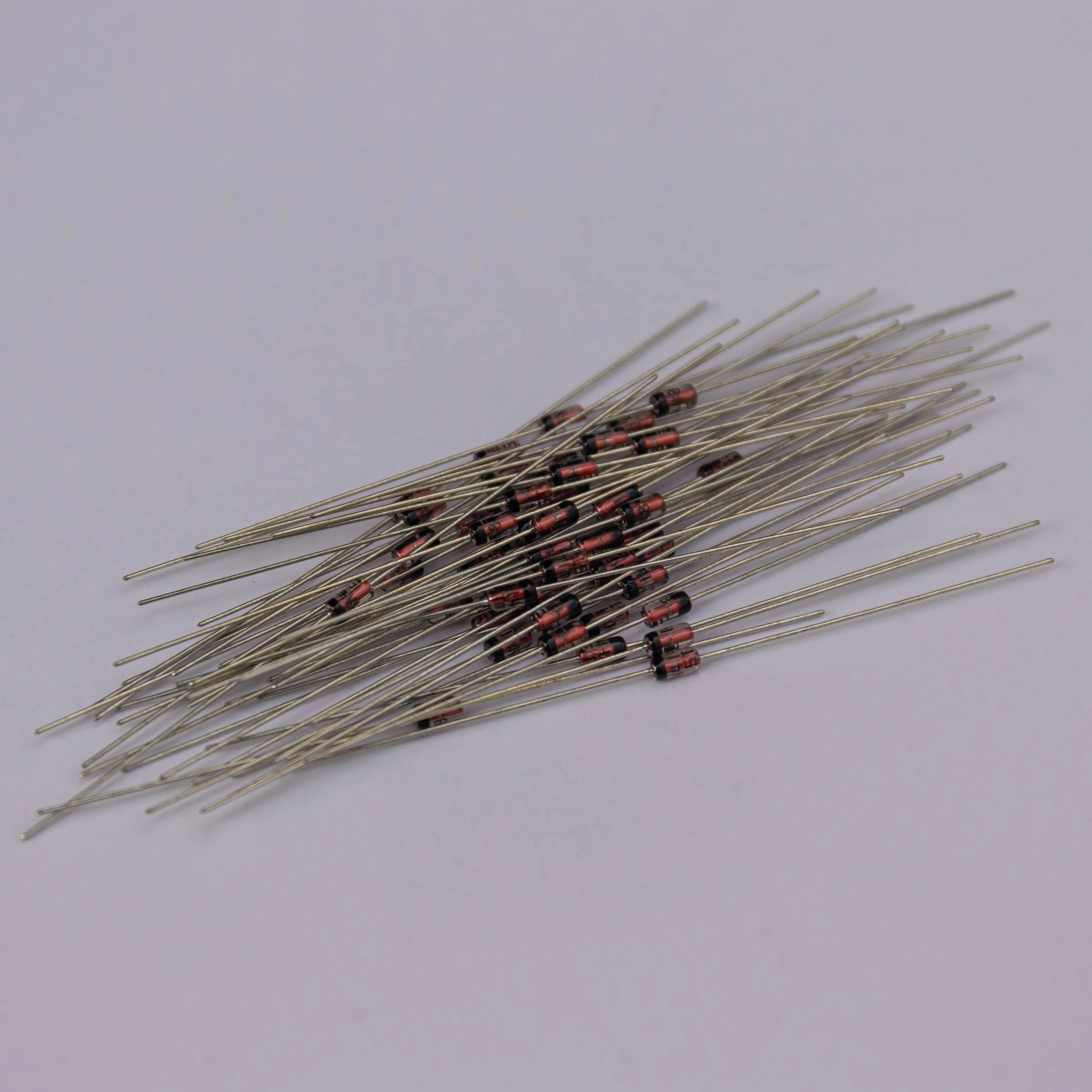

 | small diodes 1N4148 | D1…48 | 48 |

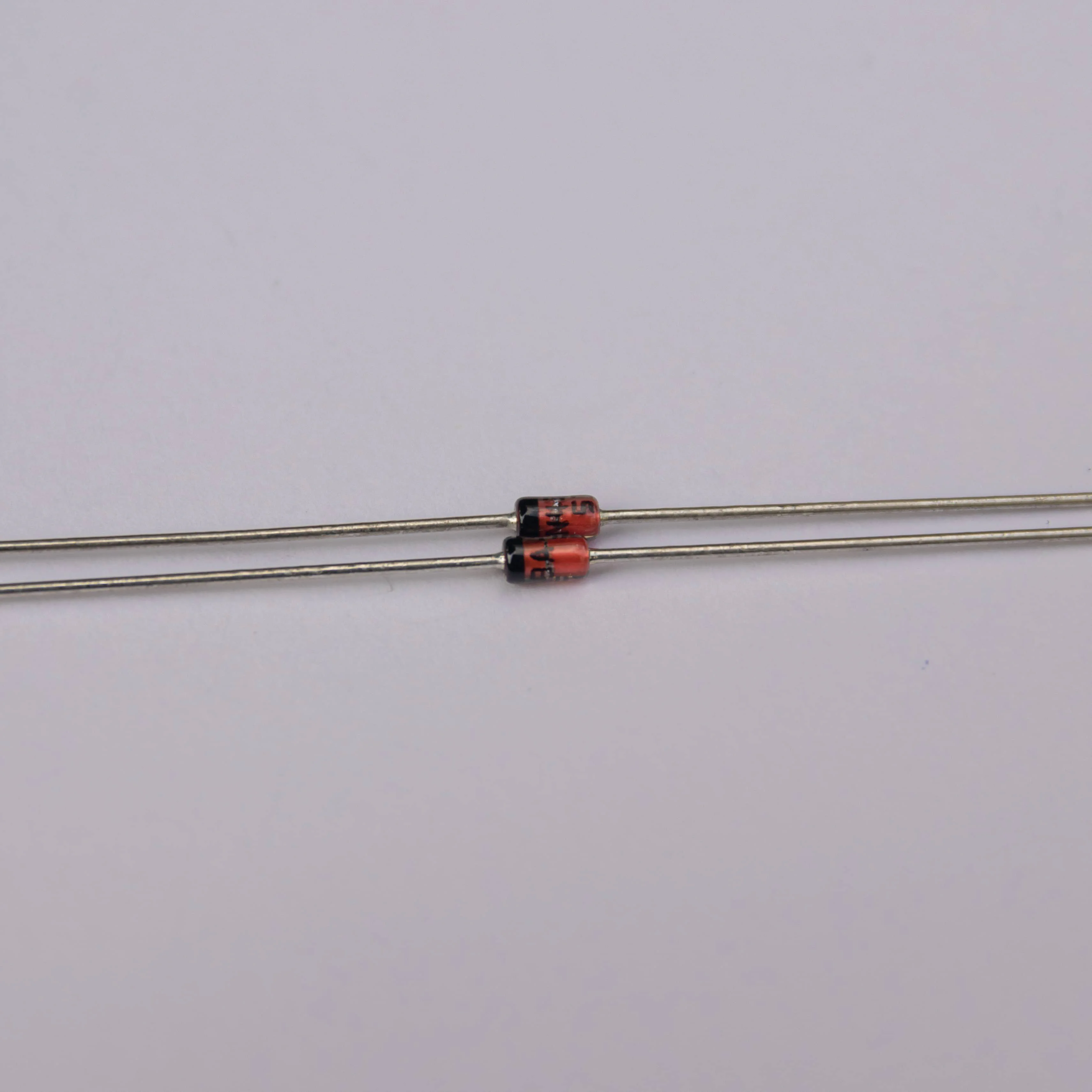

 | big diode 1N4729 | D49, D50 | 2 |

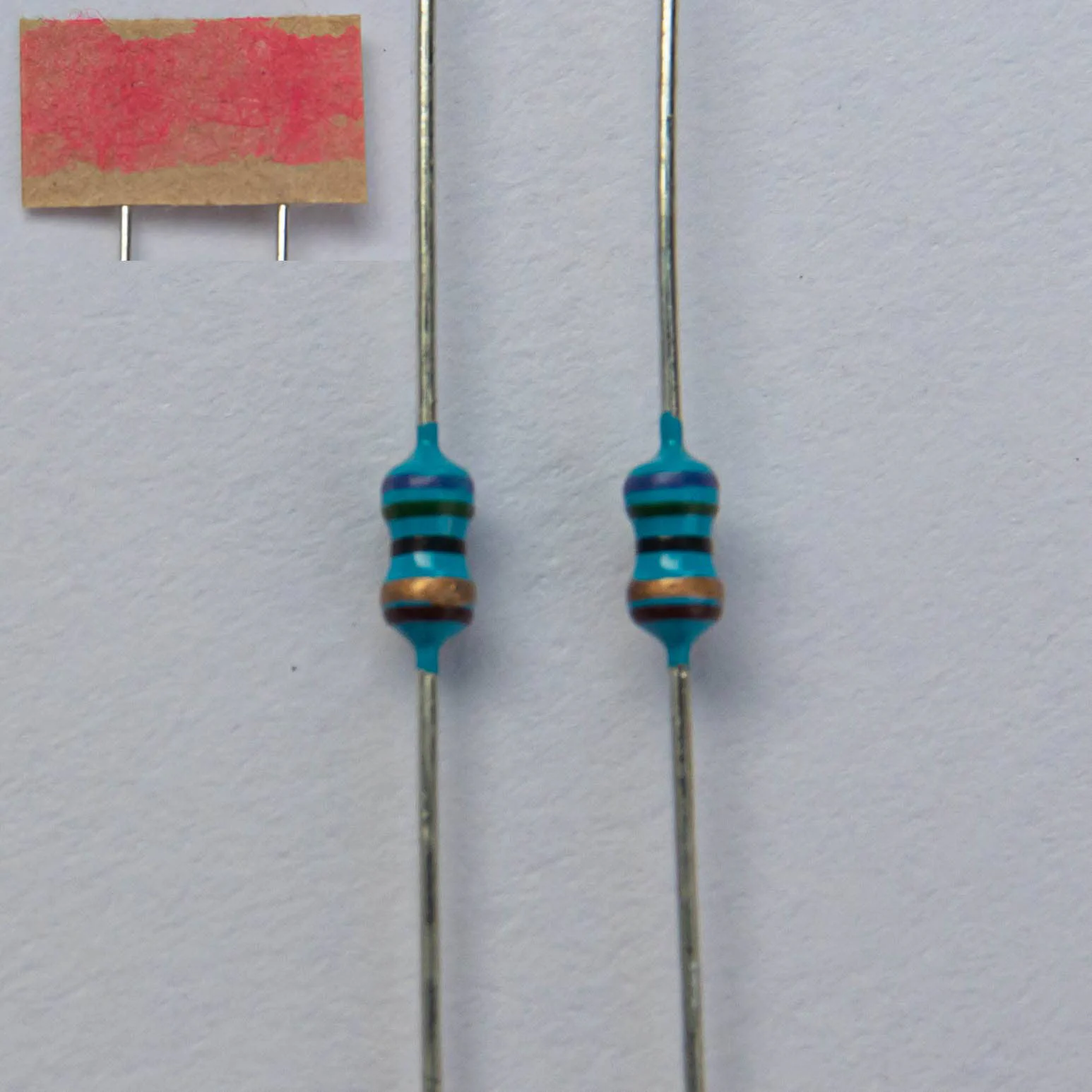

 | resistor 75Ohm | R3, R4 | 2 |

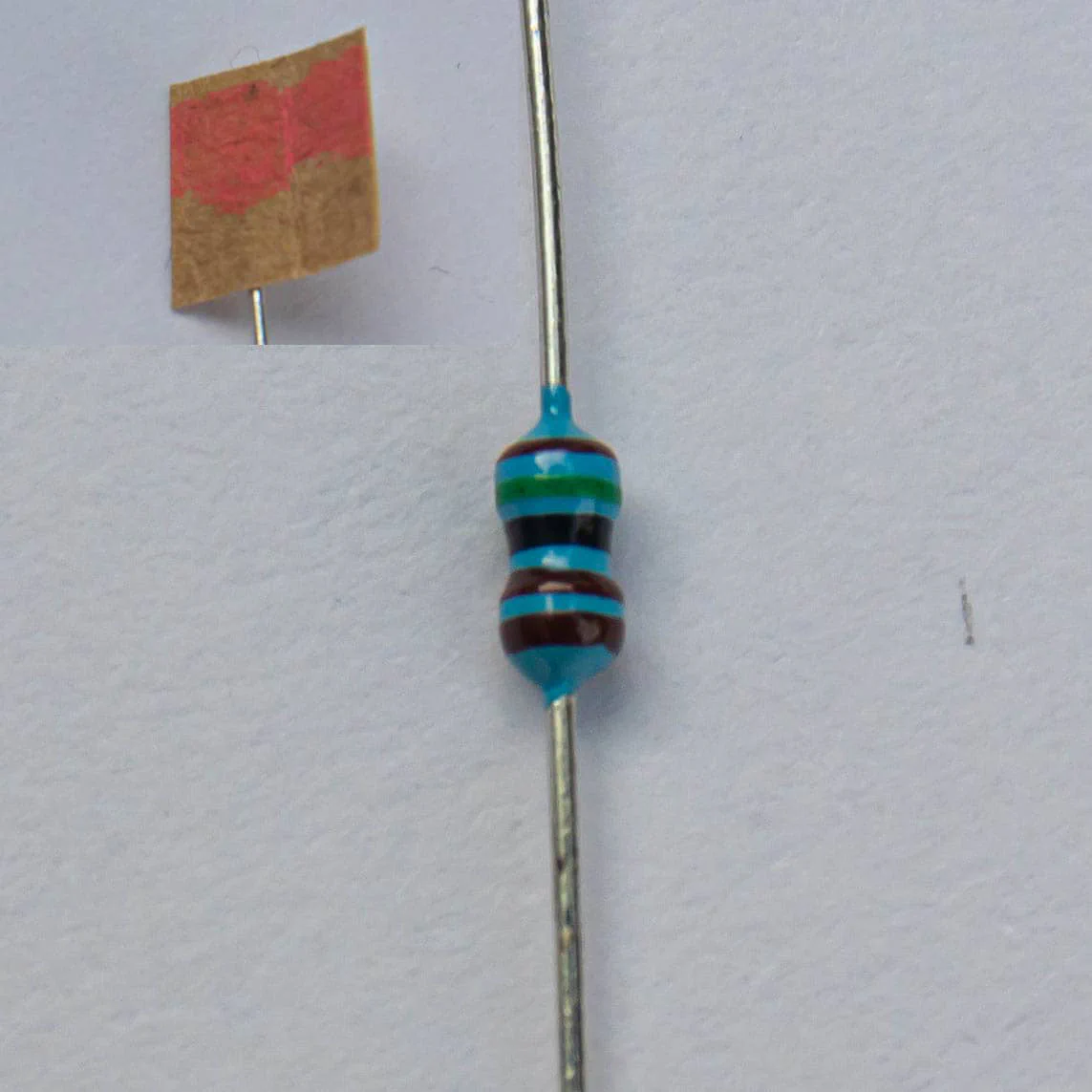

 | resistor 1.5kOhm | R6 | 1 |

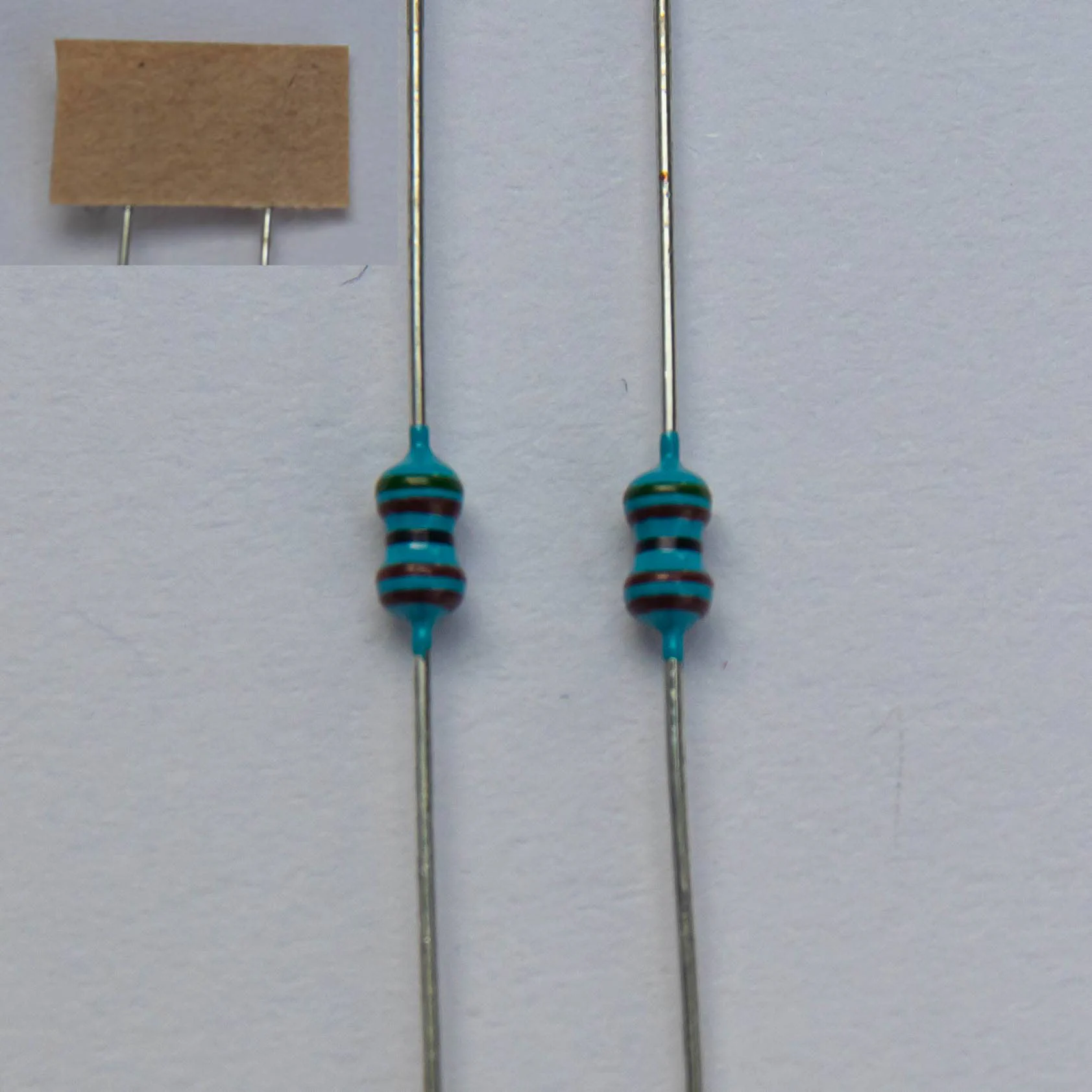

 | resistor 5,1kOhm | R1, R2 | 2 |

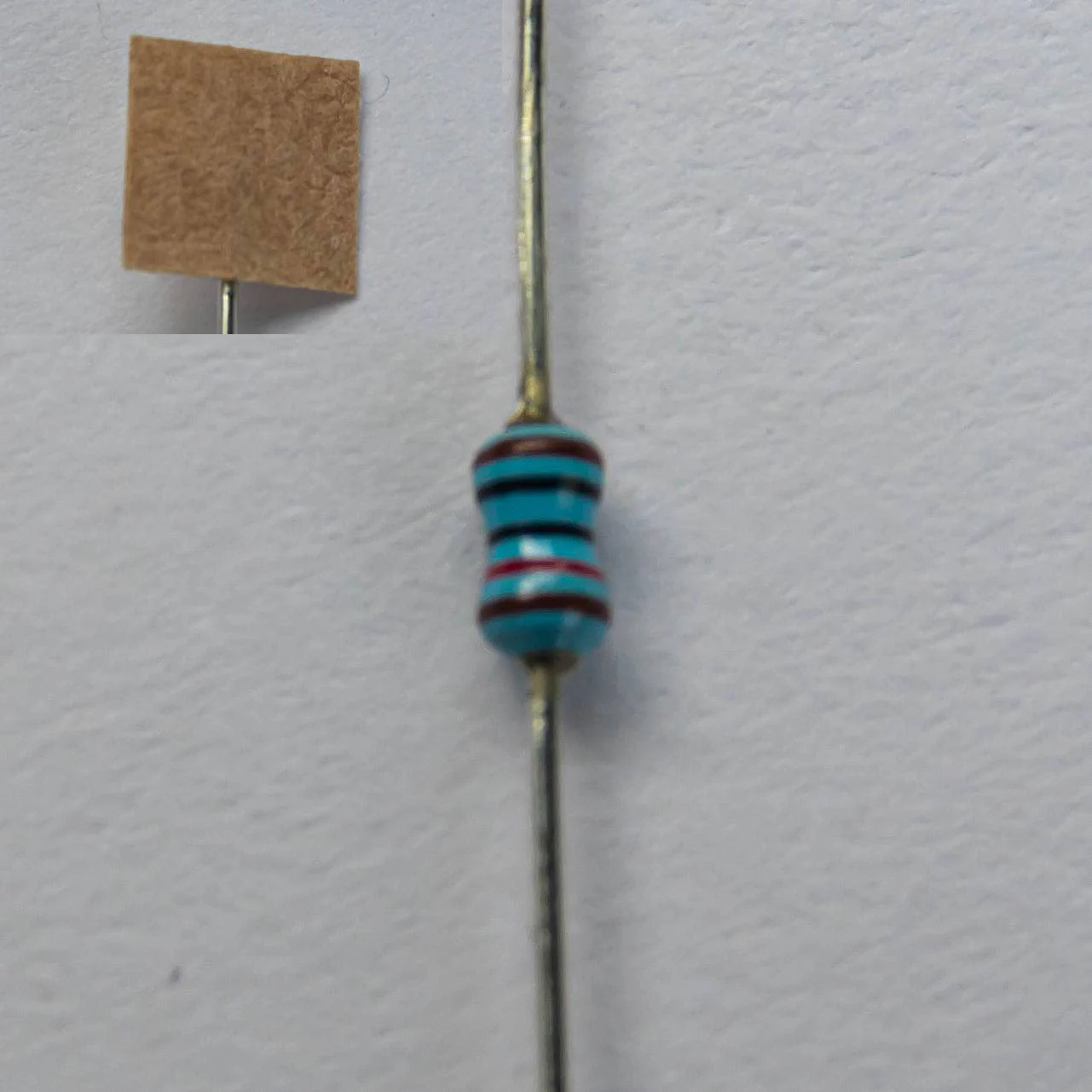

 | resistor 10kOhm | R5 | 1 |

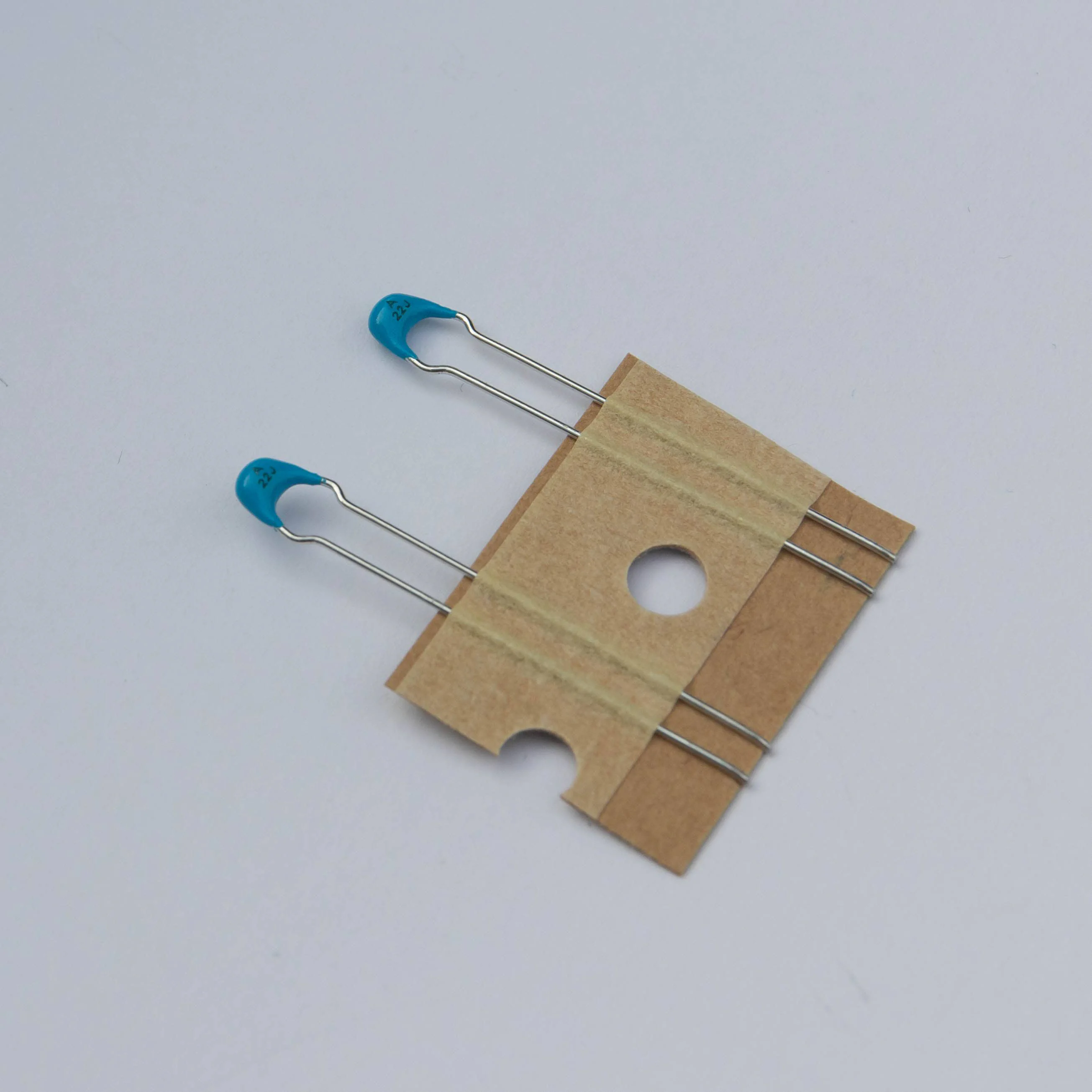

 | capacitor 20pF | C3, C4 | 2 |

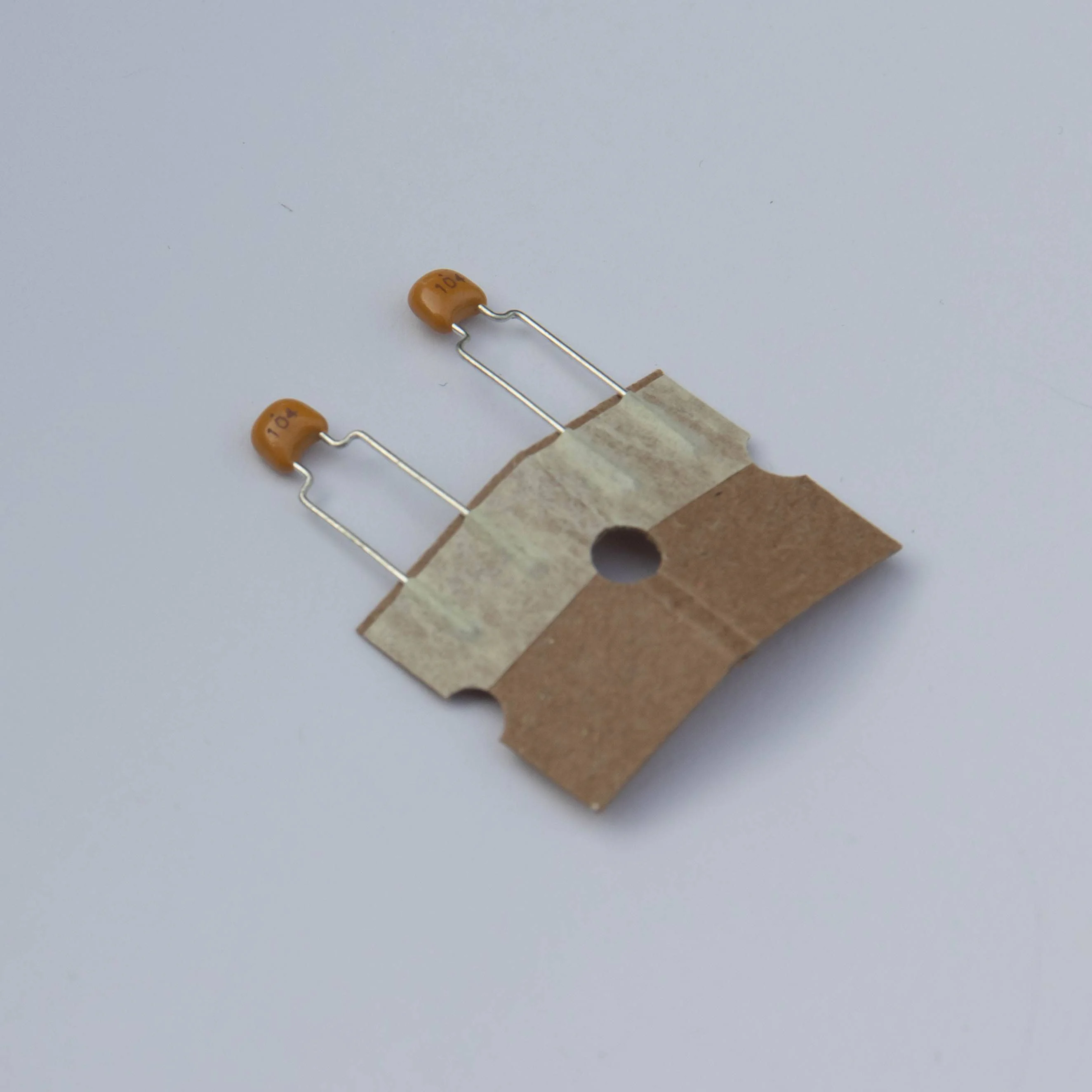

 | capacitor 0,1uF | C1, C2 | 2 |

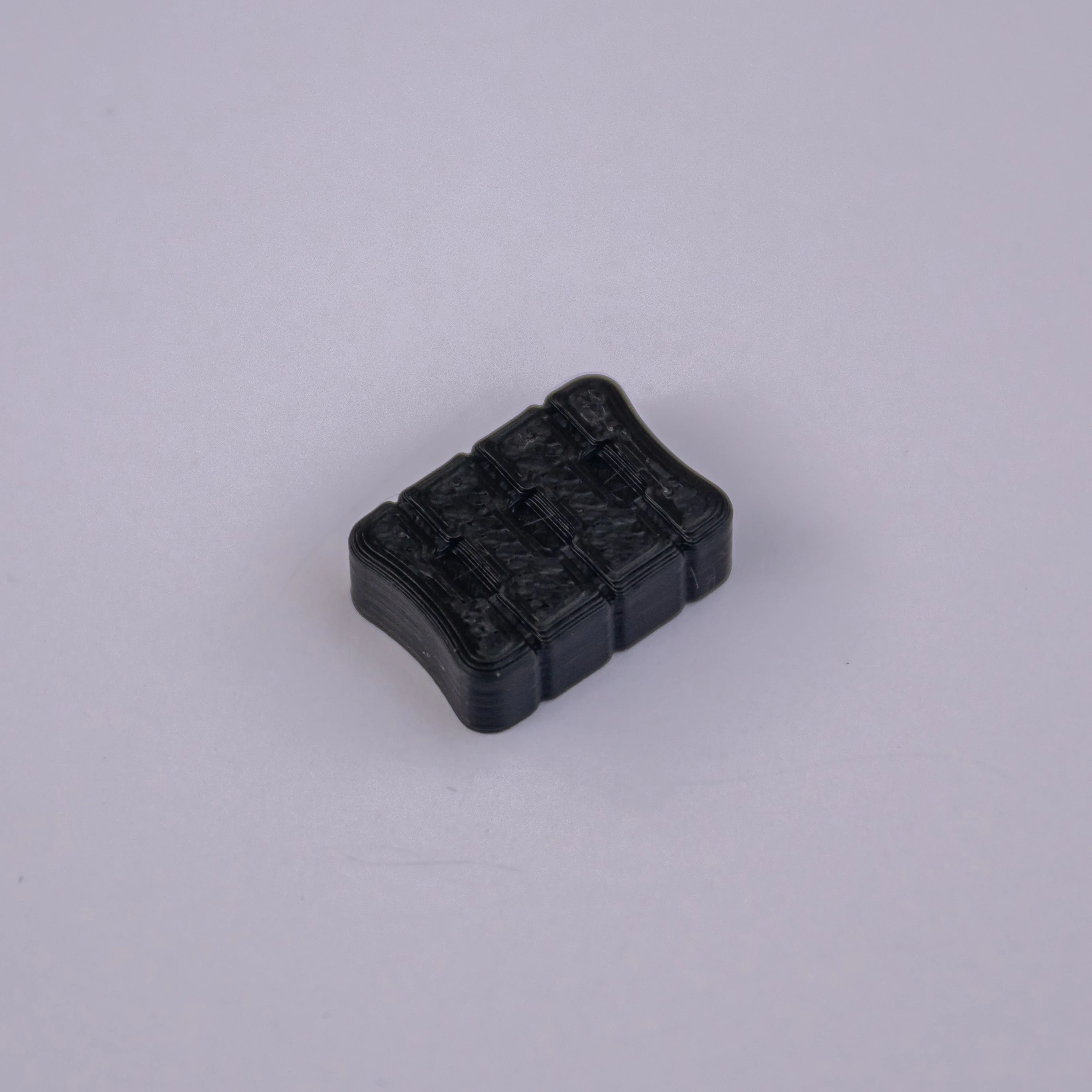

 | diode bender Use this diode bender to perfectly bend the diodes to fit in our PCB. | 1 | |

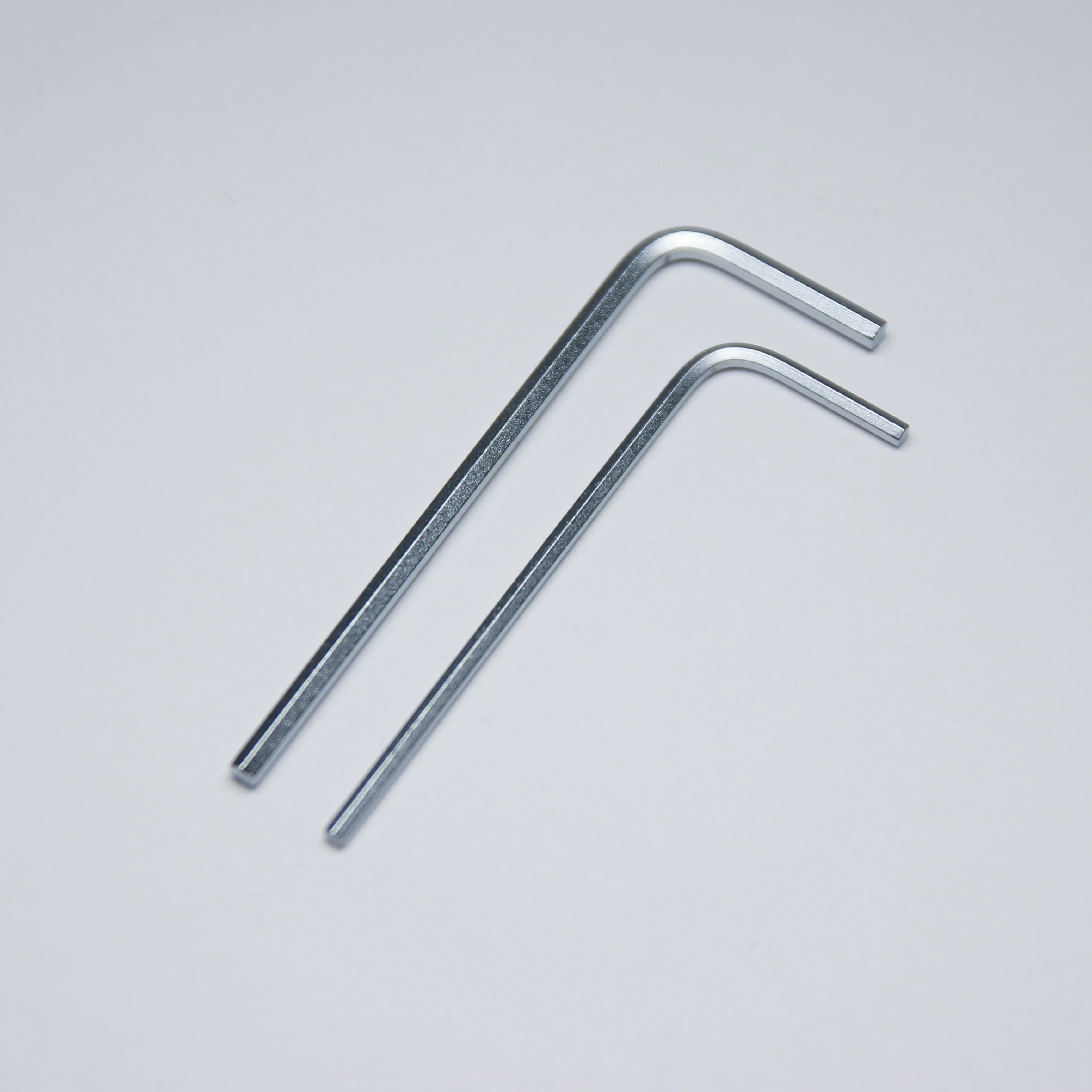

 | allen key | 2 |
